Product Description

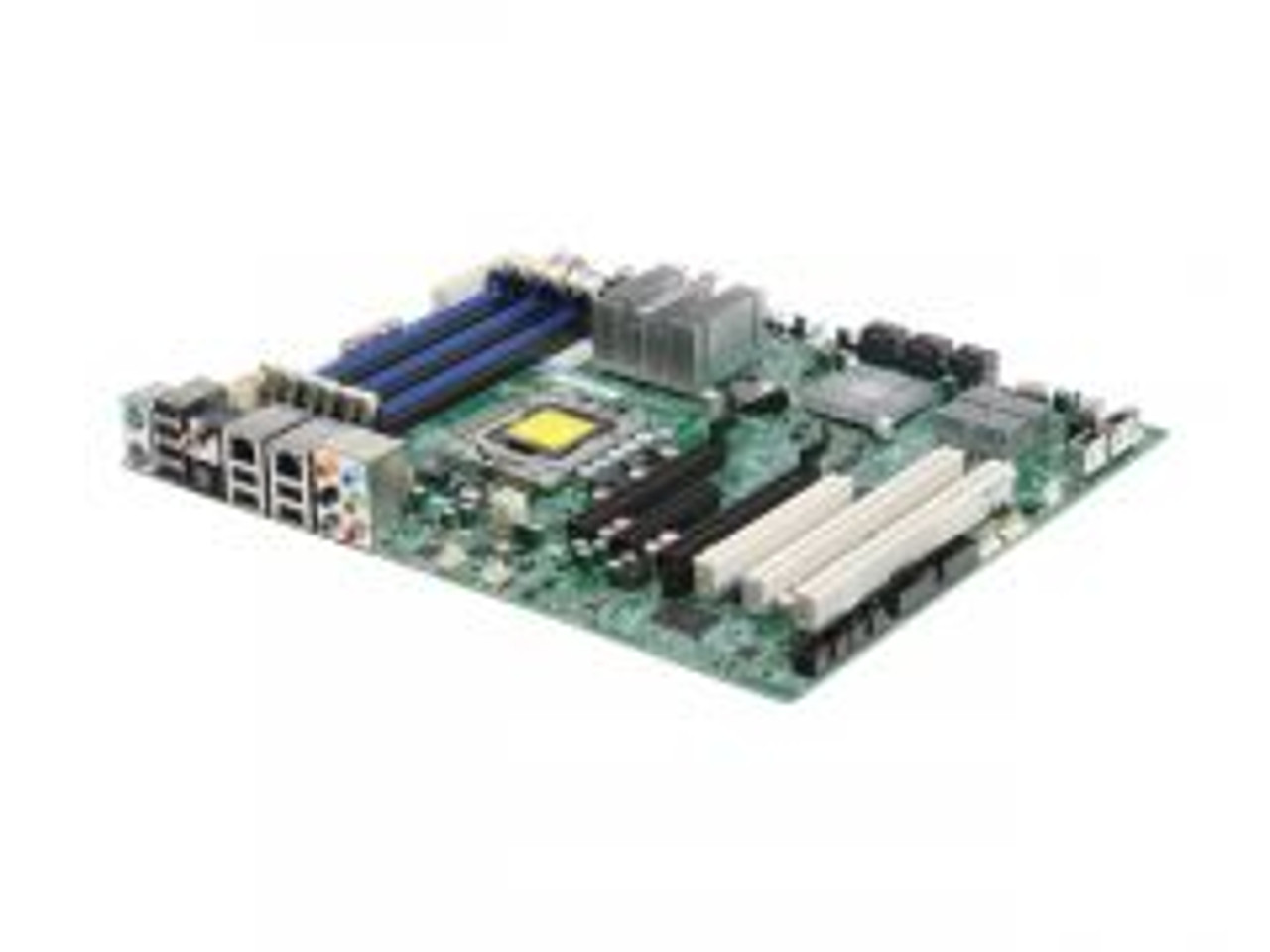

X8SAX-O | Supermicro | Intel X58 Ddr3 Atx System Board (Motherboard) Socket Lga1366Product Videos
Custom Field
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket B LGA-1366
Processor Supported Core i7
Core i7 Extreme Edition
Number of Memory Slots 6
Maximum Memory 24 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
Controller Type Floppy Controller
Serial ATA/300
RAID Supported Yes
RAID Levels 0
1
5
1+0
Audio Channels 7.1
Gigabit Ethernet Yes
Number of Total Expansion Slots 6
Total Number of PCI Express Slots 3
Number of PCI Express x4 Slots 1
Number of PCI Express x16 Slots 2
Total Number of USB Ports 8
S/PDIF Yes
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 3
Onboard S/PDIF Header Yes
Form Factor ATX
Width 12
Depth 10
Environmentally Friendly Yes
Environmental Certification RoHS
