Product Description

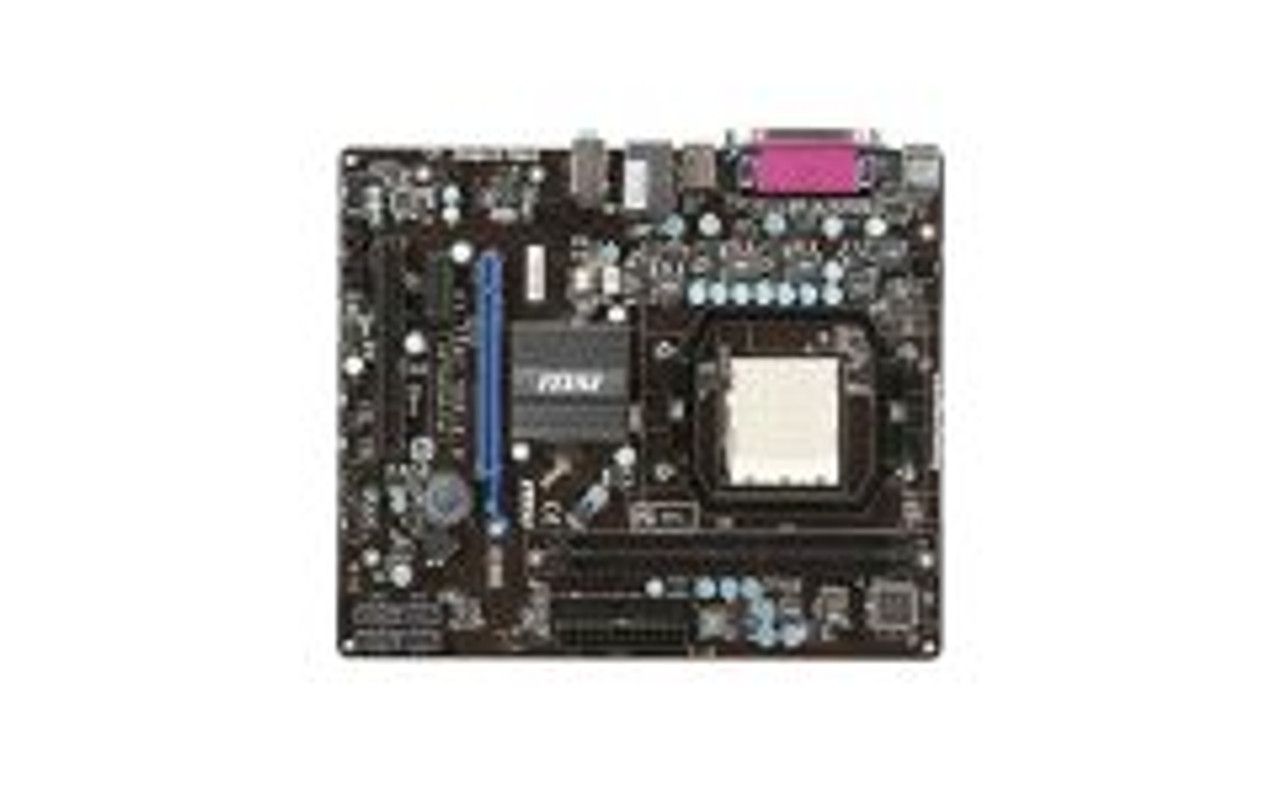

NF725GM-P43 | MSI | Desktop Motherboard NVIDIA Socket Am3 Pga-941 MICRO Atx 1 X Processor Support 16Gb Ddr3 Sdram Maximum Ram Serial Ata/300, Ultra Ata/133 (Ata-7) Yes Controller Yes 1 X Pcie X16 SlotProduct Videos
Custom Field
Chipset Manufacturer NVIDIA
Total Processor Supported 1
Processor Socket Socket AM3 PGA-941
Processor Supported Athlon II X3
Athlon II X4
Athlon II
Athlon II X2
Phenom II
Phenom II X3
Phenom II X4
Phenom II X2
Phenom II X6
Sempron
Number of Memory Slots 2
Maximum Memory 16 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
Controller Type Serial ATA/300
Ultra ATA/133 (ATA-7)
RAID Supported Yes
RAID Levels 0
1
5
1+0
Onboard Video On-board Video Chipset
Graphics Controller Manufacturer NVIDIA
Graphics Controller Model GeForce 7025
Audio Channels 7.1
Number of Total Expansion Slots 3
Total Number of PCI Express Slots 2
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 1
Total Number of USB Ports 4
VGA Yes
Number of SATA Interfaces 4
Total Number of Onboard USB Ports 4
Onboard S/PDIF Header Yes
Form Factor Micro ATX
Width 8.1
Depth 9.6
Environmentally Friendly Yes
Environmental Certification WEEE
RoHS
