Product Description

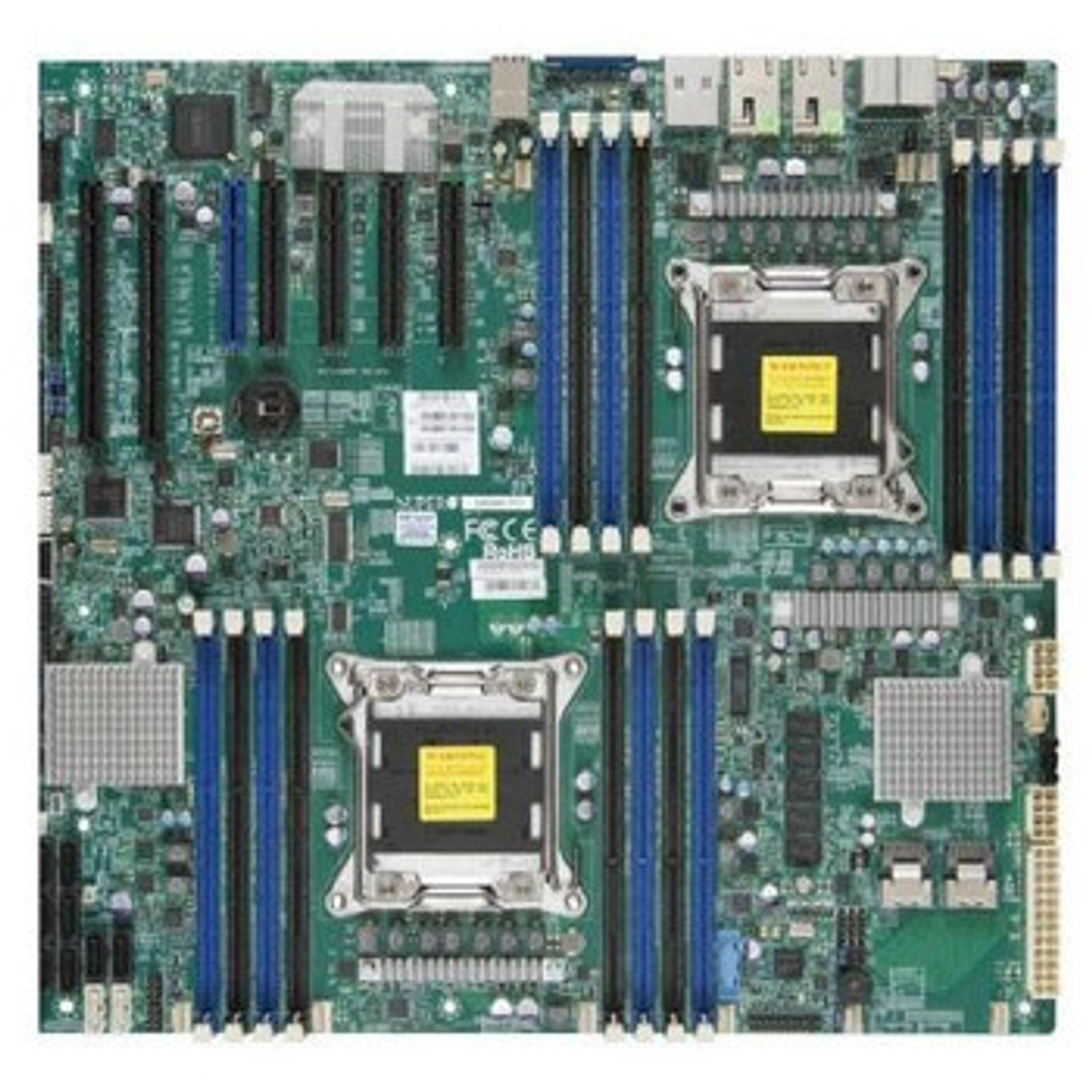

MBD-X9DAX-7F-O | SUPERMICRO | X9Dax-7F Dual Socket Lga 2011 Intel C602 Chipset Intel Xeon E5-2600/E5-2600 V2 Processors Support Ddr3 16X Dimm 8X Sata2Product Videos
Custom Field
Chipset Manufacturer Intel
Total Processor Supported 2
Processor Socket Socket R LGA-2011
Processor Supported Xeon
Number of Memory Slots 16
Memory Form Factor DIMM
RDIMM
UDIMM
Maximum Memory 512 GB
Memory Speed Supported 1.60 GHz
1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
Controller Type Serial ATA/300
Serial ATA/600
6Gb/s SAS
RAID Supported Yes
RAID Levels 0
1
5
1+0
50
60
6
Onboard Video No
Audio Channels 7.1
Gigabit Ethernet Yes
Number of Total Expansion Slots 6
Total Number of PCI Express Slots 6
Number of PCI Express x8 Slots 4
Number of PCI Express x16 Slots 2
Total Number of USB Ports 6
Number of USB 3.0 Ports 2
Number of SATA Interfaces 10
Number of SAS Interfaces 8
Total Number of Onboard USB Ports 5
Number of Onboard USB 3.0 Ports 2
Onboard S/PDIF Header Yes
Form Factor Enhanced Extended ATX
Width 13.7
Depth 13
Environmentally Friendly Yes
Environmental Certification RoHS-6
