Product Description

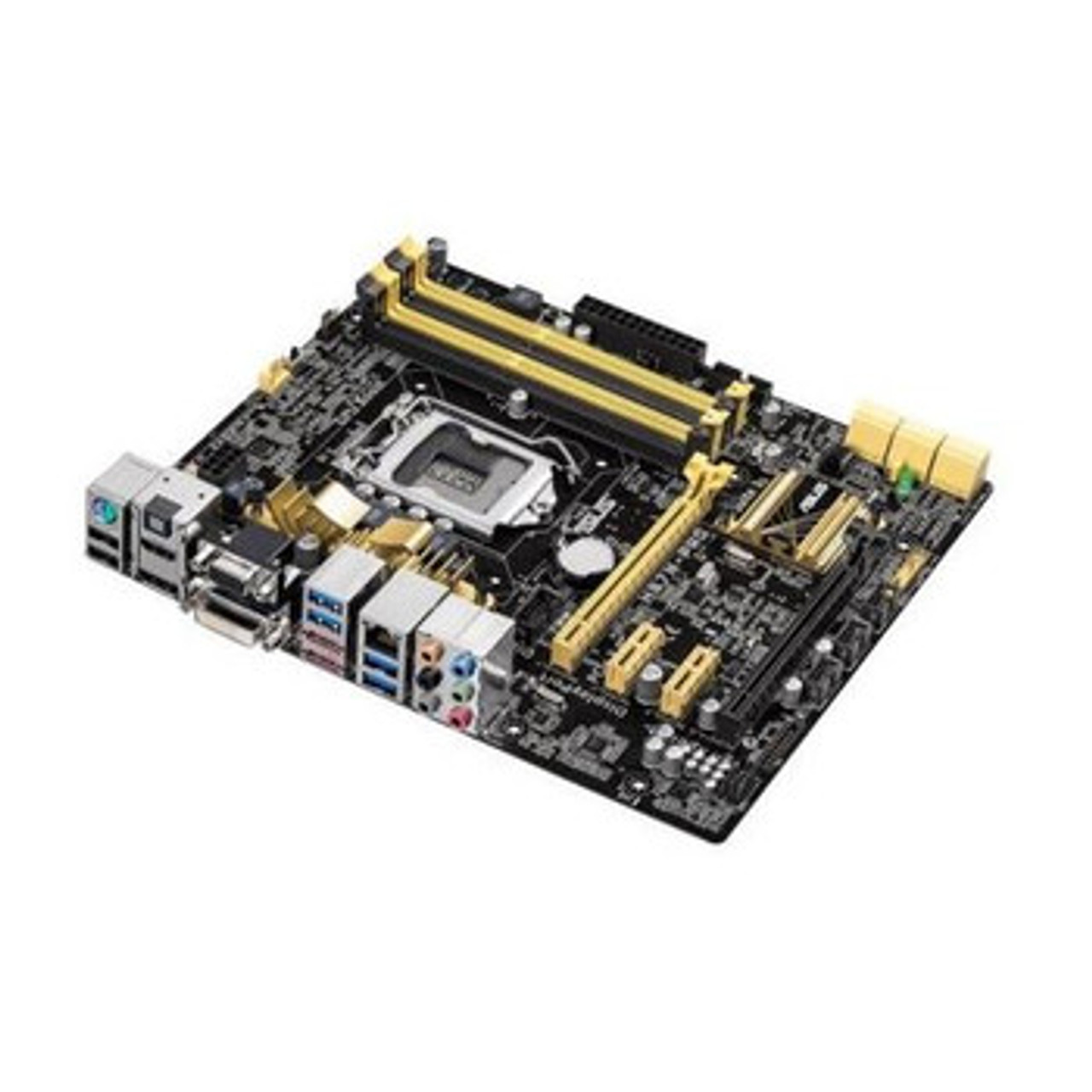

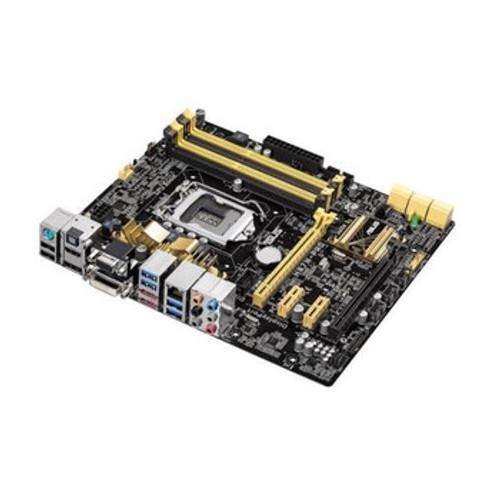

H87M-PRO | ASUS | Socket LGa 1150 INTEL H87 Chipset 4Th GenerATIon Core I7 / I5 / I3 / Pentium / Celeron Processors Support Ddr3 4X Dimm 6X Sata 6.0Gb/S MProduct Videos
Custom Field
Form Factor Micro ATX
CPU Socket Type LGA 1150
Supported CPU(s) Intel Celeron Processor
Intel Core i3 Processor
Intel Core i5 Processor
Intel Core i7 Processor
Intel Pentium Processor
Supported CPU Technologies Intel Turbo Boost Technology
Number of Memory Slot(s) 4
Number of Memory Channel(s) 2
Supported Memory Standard(s) PC3-10600 (DDR3-1333)
PC3-12800 (DDR3-1600)
PC3-8500 (DDR3-1066)
Maximum Installed Memory 32 GB
Expansion Slots PCI-E 2.0 x1
PCI-E 2.0 x16
PCI-E 3.0 x1
PCI-E 3.0 x16
Expansion Slots Details 1 x PCIe 3.0/2.0 x16 (x16 mode, yellow)
1 x PCIe 2.0 x16 (x4 mode, dark brown) *1
2 x PCIe 2.0 x1
Storage Controller SATA 6.0 Gbps
Audio Controller Realtek ALC892
Network Gigabit Ethernet
Connectors/Ports Audio-In
Audio-Out
Chassis Fan Connector
COM
CPU Fan Connector
HDMI
PS/2 Keyboard
PS/2 Mouse
RJ-45
USB 2.0
USB 3.1
Connectors/Ports Details Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x DisplayPort
1 x HDMI
2 x eSATA 6Gb/s
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 1 (blue)
2 x USB 2.0
1 x Optical S/PDIF out
6 x Audio jack(s)
Internal I/O Ports
1 x USB 3.1 Gen 1
