Product Description

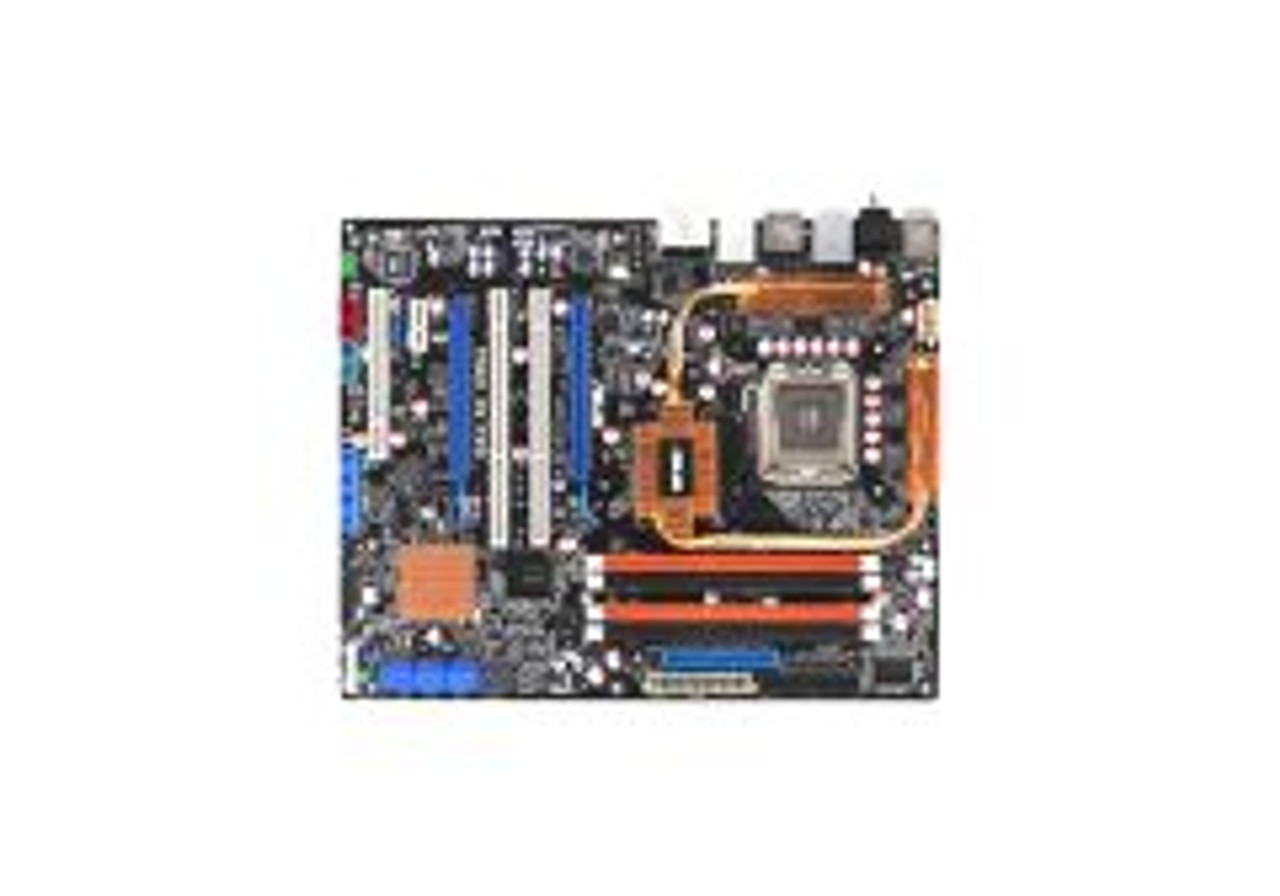

90-MBB7K0-G0AAY00Z | ASUS | P5E3 Ws Professional WorkstATIon Board INTEL X38 Express Socket T 1333Mhz, 1066Mhz, 800Mhz Fsb 8Gb Ddr3 Sdram Ddr3-1333/Pc3-10600, Ddr3-1066/Pc3-8500, Ddr3-800/Pc3-6400 ATI Crossfire AtxProduct Videos
Custom Field
Chipset Manufacturer Intel
Total Processor Supported 1
Processor Socket Socket T LGA-775
Processor Supported Celeron
Celeron Dual-Core
Core 2 Duo
Core 2 Extreme
Core 2 Extreme Quad-Core
Core 2 Quad
Pentium 4
Pentium D
Pentium Extreme Edition
Number of Memory Slots 4
Maximum Memory 8 GB
Memory Speed Supported 1.33 GHz
1.07 GHz
800 MHz
Memory Technology DDR3 SDRAM
Controller Type Floppy Controller
Serial ATA/300
Ultra ATA/133 (ATA-7)
RAID Supported Yes
RAID Levels 0
1
5
1+0
Audio Channels 7.1
Gigabit Ethernet Yes
Number of Total Expansion Slots 6
Total Number of PCI Express Slots 3
Number of PCI Express x1 Slots 1
Number of PCI Express x16 Slots 2
Total Number of USB Ports 6
S/PDIF Yes
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 3
Form Factor ATX
Width 12
Depth 9.6
Environmentally Friendly Yes
Environmental Certification RoHS
